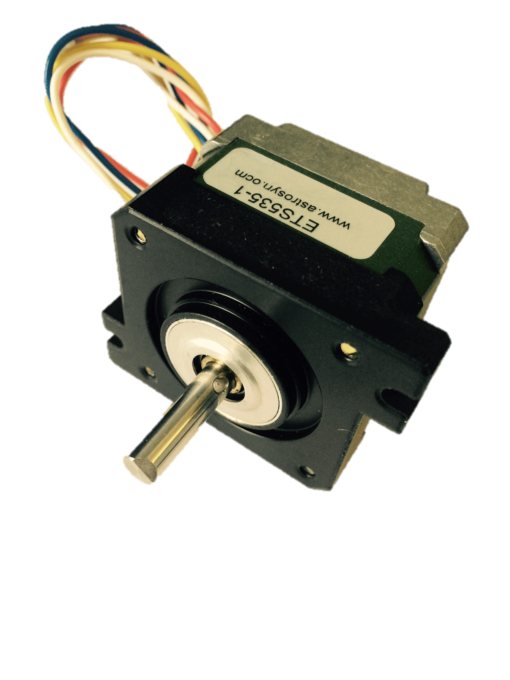

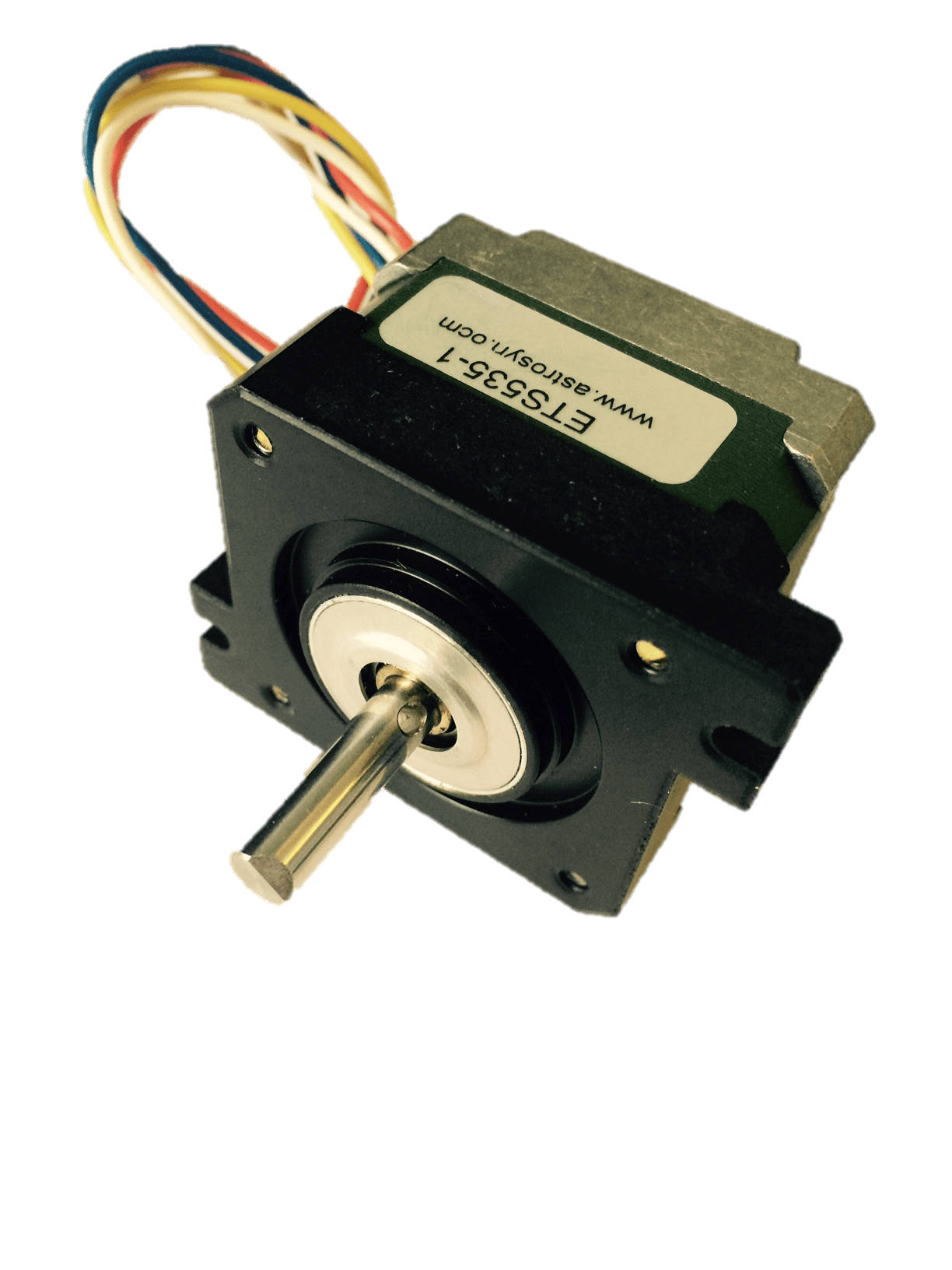

ETS535-1 Single Shaft Stepper Motor 0.9°

£15.00

10 in stock

SKU: ETS535-1 0.9°
Category:

Product Description


The  ETS535-1 is a 0.9° Single Shaft Stepper Motor.

Key Features

  • NEMA 16
  • Bipolar
  • 0.9 °
  • Single shaft with two thru-holes near spigot

Electrical Specification:

  • Part Number:          ETS535-1
  • Motor Type:             Bipolar
  • Step Angle:             0.9° with 5% accuracy
  • Holding Torque:       7.5 N-cm
  • Phase Resistance:   10 Ohm
  • Inductance:              8.5 mH

Physical Specification

  • Frame size:              45 x 45 mm
  • Body Length:            31 mm
  • Shaft Diameter:        ø 5 mm
  • Shaft Length:            20.0 mm ± 0.5
  • Number of Leads:     4
  • Lead Length:            150 mm with connector
  • Weight:                     210 g

Additional information

Weight .210 kg

Data Sheets

PDF: ETS535 1 Spec
