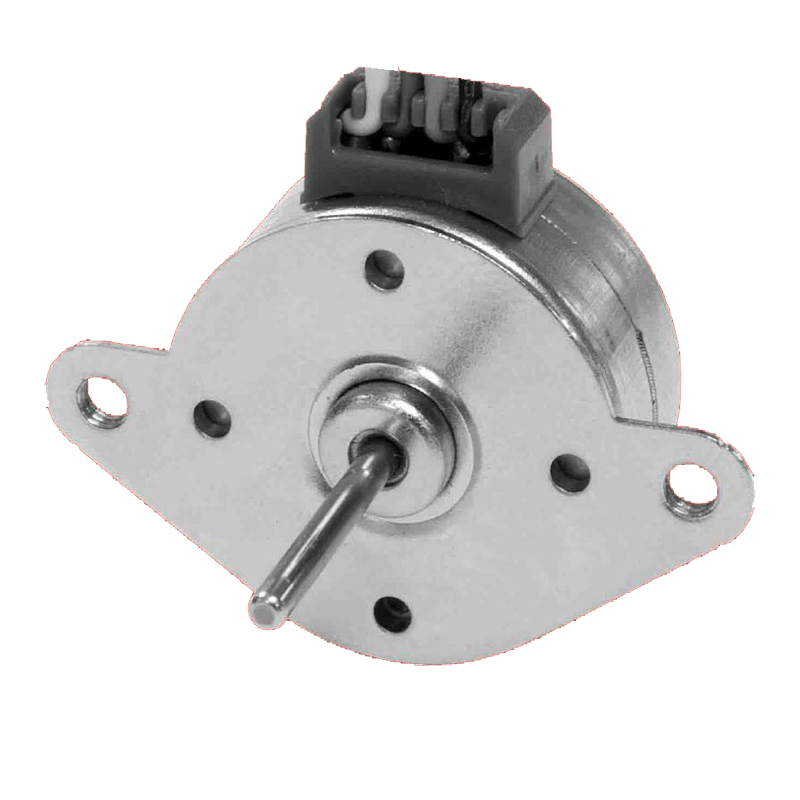

Product Description
This item is not available for purchase online at this time. Please contact us regarding your specific requirements. Minimum order quantity applies.
Key Features
- Unipolar or Bipolar Models
- Step angles 15.0° or 7.5°
- Two motor lengths
Motor Ranges
Unipolar Models
| Model Number |
Step Angle |
Motor Length |
Phase Resistance |
Drive Voltage |
|
Degrees |
L mm |
Ohms |
Volts |
| MP25P024SU |
15.0 |
12.5 |
60 |
15 |
| MP25P048SU |
7.5 |
12.5 |
100 |
24 |
| MP25P024LU |
15.0 |
17.0 |
30 |
12 |
| MP25P048LU |
7.5 |
17.0 |
16 |
5 |
Bipolar Models
| Model Number |
Step Angle |
Motor Length |
Phase Resistance |
Drive Voltage |
|
Degrees |
L mm |
Ohms |
Volts |
| MP25P024SB |
15.0 |
12.5 |
6 |
17 |
| MP25P048SB |
7.5 |
12.5 |
18 |
24 |
| MP25P024LB |
15.0 |
17.0 |
8 |
24 |
| MP25P048LB |
7.5 |
17.0 |
8 |
12 |
Q: Does Astrosyn sell PM steppers online?
A: No. This is because most PM stepper applications are customised to match the motor to a specific duty. Our preference is to work with our customers by trialling samples in a pre-production environment before agreeing a final PM stepper motor specification.
Q: Do you offer customised PM stepper motors?
A: Yes, we can supply PM stepper motors with a very wide range of custom options, including special shafts, flanges, wiring, connectors and accessories such as gearboxes. We would be pleased to quote for your specific requirement.
Q: Are the products compliant with the RoHS Directive?
A: Our materials and manufacturing processes were converted to RoHS-compliance several years ago. All of our current products are fully RoHS-compliant.
Q: Are your PM stepper motors suitable for worldwide use?
A: Yes.
Q: Do you accept credit card payment for goods?
A: Yes, payment can be made using Mastercard or Visa. We cannot process American Express or any other card type.
Q: What are your lead times?
A: Samples of standard products are normally available ex-stock or within 1-3 days. Custom designs and large quantities obviously take longer, but we generally set up a call-off schedule to ensure that a steady supply can be guaranteed.
PM Stepper Motors FAQs
