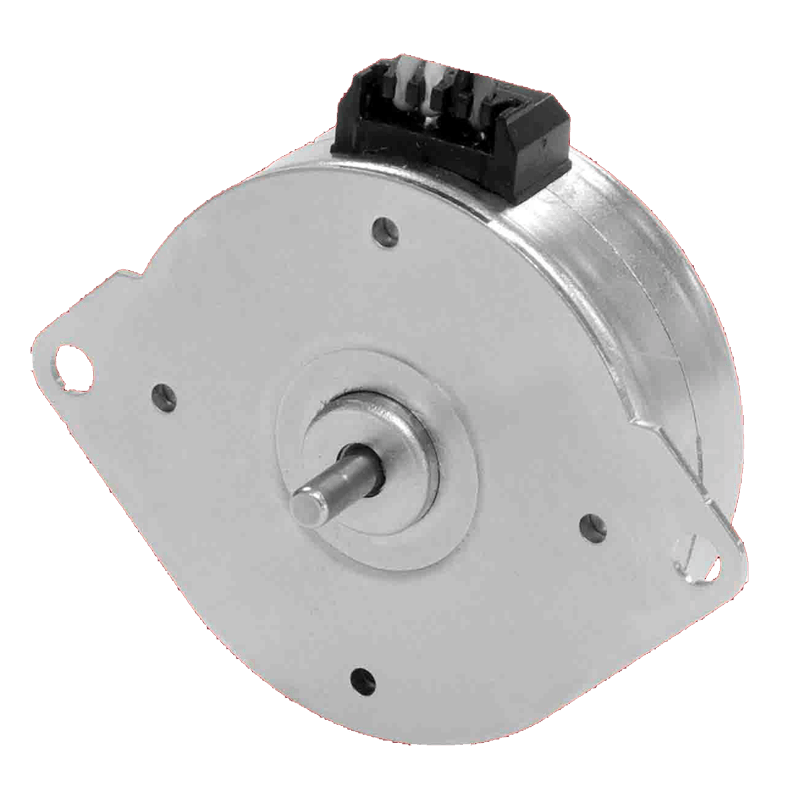

Product Description
This item is not available for purchase online at this time. Please contact us regarding your specific requirements. Minimum order quantity applies.
Key Features
- Unipolar or Bipolar Models
- Step angles 7.5°, 3.75° or 3.6°
- Two motor lengths
Motor Ranges
Unipolar Models
| Model Number | Step Angle | Motor Length | Phase Resistance | Drive Voltage |
| Degrees | L mm | Ohms | Volts | |
| MP42P048SU | 7.5 | 15.3 | 88 | 24 |
| MP42P096SU | 3.75 | 15.3 | 9 | 12 |
| MP42P100SU | 3.6 | 15.3 | 100 | 24 |
| MP42P048LU | 7.5 | 21.3 | 10 | 24 |
| MP42P096LU | 3.75 | 21.3 | 12 | 36 |
| MP42P100LU | 3.6 | 21.3 | 100 | 24 |
Bipolar Models
| Model Number | Step Angle | Motor Length | Phase Resistance | Drive Voltage |
| Degrees | L mm | Ohms | Volts | |
| MP42P048SB | 7.5 | 15.3 | 9 | 24 |
| MP42P096SB | 3.75 | 15.3 | 5 | 24 |
| MP42P100SB | 3.6 | 15.3 | 8 | 28 |
| MP42P048LB | 7.5 | 21.3 | 3 | 24 |
| MP42P096LB | 3.75 | 21.3 | 3 | 24 |
| MP42P100LB | 3.6 | 21.3 | 8 | 24 |
