EHY21512 Hybrid Stepper Motor NEMA 23

£22.00

30 in stock

SKU: EHY21512
Category:

Product Description

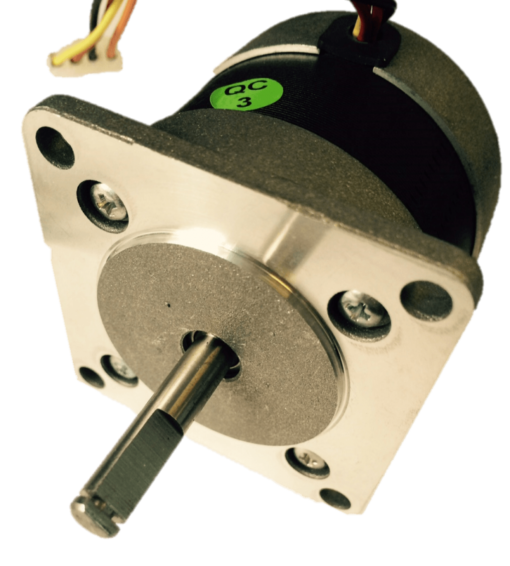

The EHY21512 is a 1.8° Single Shaft (Special Shaft) Hybrid Stepper Motor.

Key Features

  • NEMA 23
  • High Accuracy
  • Smooth Movement
  • Bipolar Mode Parallel

Electrical Specification:

  • Part Number:          EHY21512
  • Motor Type:             Bipolar
  • Step Angle:             1.8° with 5% accuracy
  • Holding Torque:       64 Ncm
  • Phase Resistance:  0.6 Ohm
  • Inductance:              0.45 mH

Physical Specification

  • Frame size:              57.2 x 57.2 mm
  • Body Length:            52 mm
  • Shaft Diameter:        ø 6.35 mm
  • Number of Leads:     4
  • Lead Length:            100mm
  • Weight:                     500 g

Additional information

Weight .500 kg

Dimension diagram


Data Sheets

PDF: Astrosyn EHY21512 Spec
