P860A Microstepping Driver 2.8A-8.4A

£149.50

Out of stock

SKU: P860A Category:

Product Description

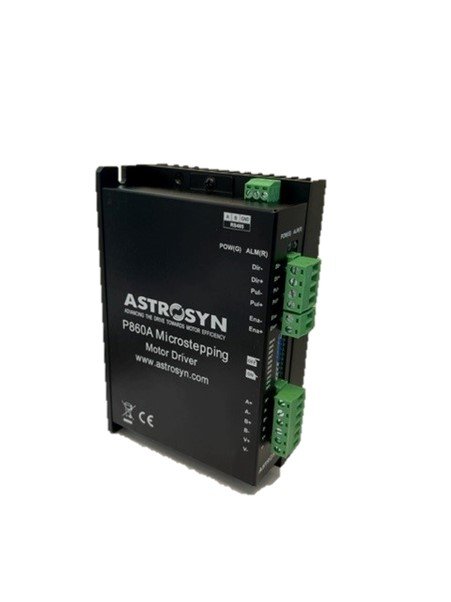

Model P860A Microstepping Driver 2.8A -8.4A Amp is a full digital high performance DSP Driver .

The design features an advanced bipolar constant-current chopper circuit with current control technology.  The driver is suited to stepper motor control applications requiring low noise, low vibration, high speed and high precision.

  • High Performance Low cost
  • Supply Voltage 24V to 110 V dc or 18V to 80A ac
  • Inaudible chopping frequency
  • Drive Current  from 2.8 A to 8.4 A / phase (Peak), (Working current 2.0 to 6.0 A)
  • TTL Compatible and Optically isolated input signals
  • Automatic idle current reduction
  • Mixed-decay current control for reduced motor heating
  • 16 Selectable step resolutions in decimal and binary (Max 51200ppr)
  • Suitable for 4, 6 or 8 lead wire motors
  • Step, Direction and Enable inputs
  • Over temperature and over voltage protected
  • Short circuit protected.

Additional Specifications:

Drive Current:               Adjustable from 2.8A to 8.4A

Supply Voltage:            Input voltage from +24V to 110Vdc

Step Control:                Full Step or Microstepping

Control Inputs:             Connections for pulse, direction and enable signals

Pulse Signal:               Speed control to maximum frequency 200 khz

Direction Signal:          Clockwise or counter-clockwise rotation

Enable Signal:             Driver Enable or Disable

Logic Signals:              Current from 6 mA to 30mA

Material:                      Black Coated Aluminium with Intergral Heatsink

Mounting:                    Free standing or Via Mounting holes

Dimensions:               150 x 53 x 97.5mm

Mass;                         600 g
