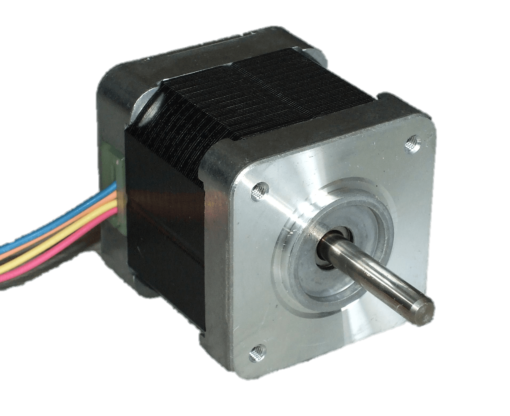

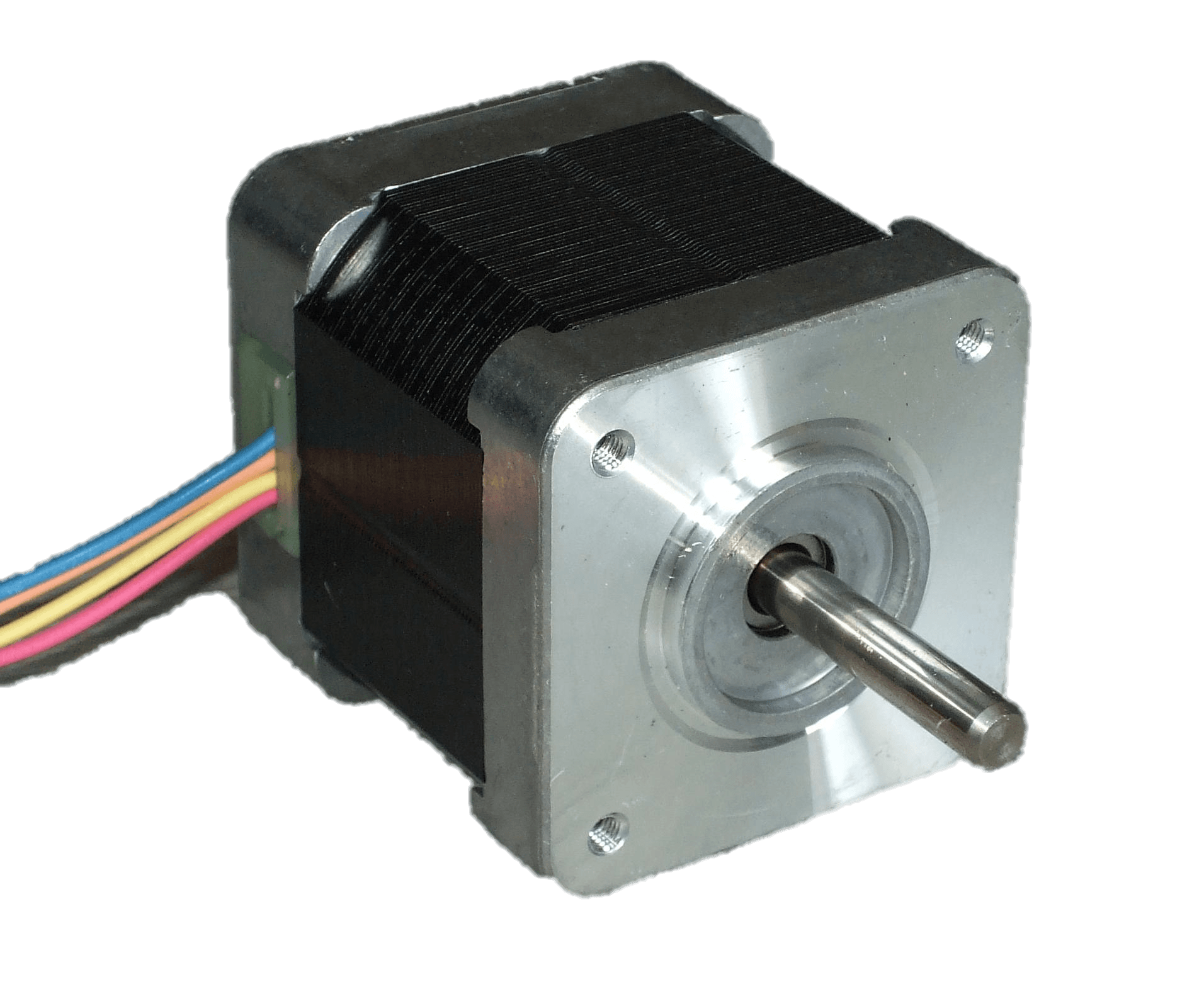

E1718B071 Astrosyn Hybrid Stepper Motor

£15.00

E1718B071 Astrosyn Hybrid Stepper Motor

7 in stock

SKU: E1718B071
Category:

Product Description


E1718B071 Astrosyn Hybrid Stepper Motor

Key Features of the E1718B071 Astrosyn Hybrid Stepper Motor

  • NEMA 17
  • Bipolar
  • 1.8 °
  • Single shaft

Electrical Specification:

  • Part Number:          E1718B071
  • Motor Type:             Bipolar
  • Step Angle:             1.8° with 5% accuracy
  • Holding Torque:       490 mNm
  • Phase Resistance:   2.4 Ohm
  • Inductance:              5.7 mH

Physical Specification

  • Frame size:              42 x 42 mm
  • Body Length:           48 mm
  • Shaft Diameter:        ø 5 mm
  • Shaft Length:            24.0 mm ± 0.5
  • Number of Leads:     4
  • Lead Length:            300 mm with connector
  • Weight:                     210 g



Additional information

Weight 0.350 kg
Dimensions 48 × 42 × 42 cm

Dimension diagram


Data Sheets

PDF: AstrosynE1718B071 Spec



No Guides for this product
