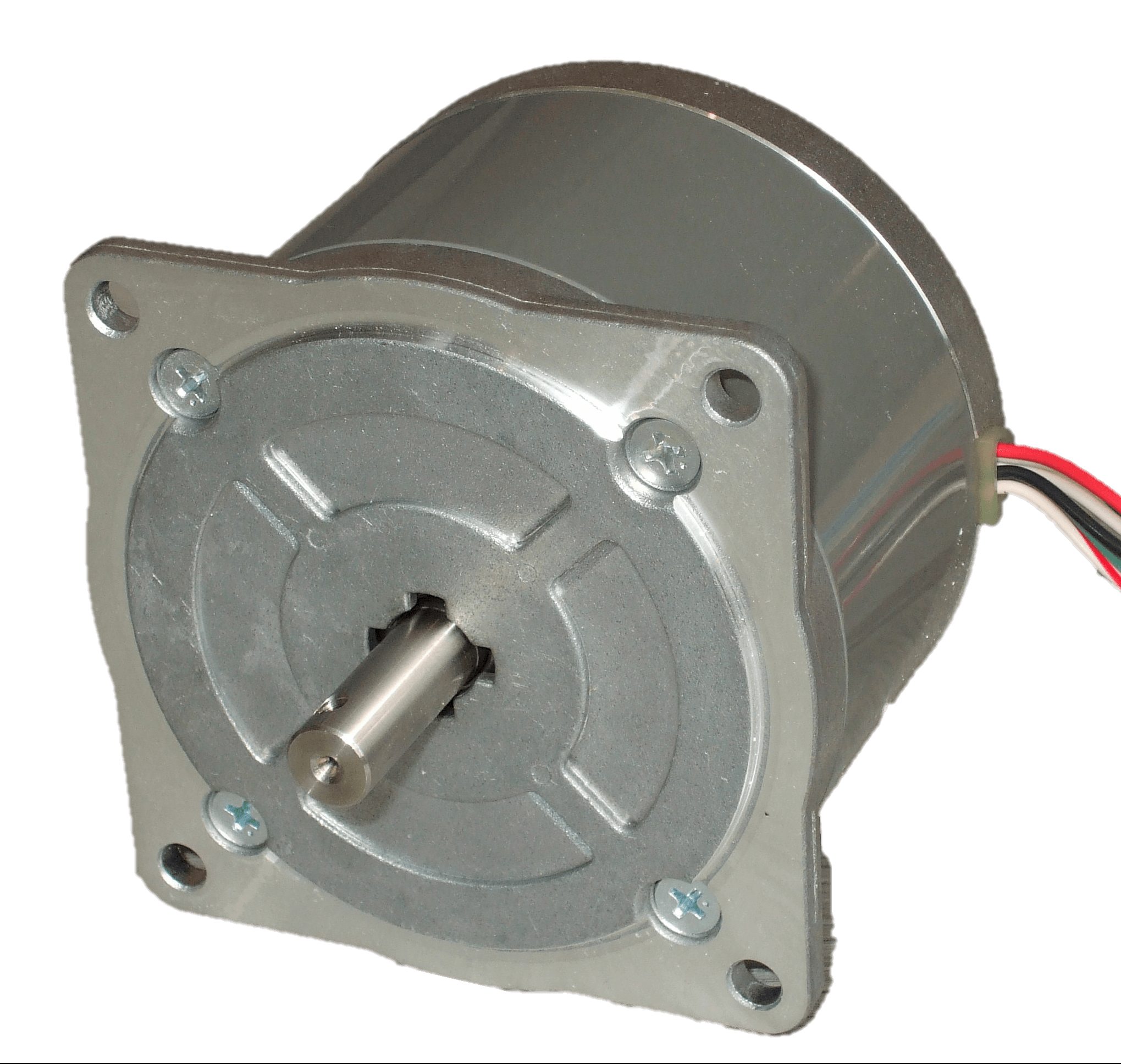

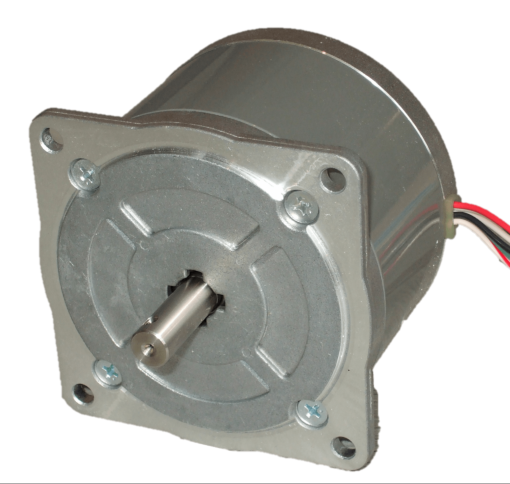

E3418S257 Astrosyn Hybrid Stepper Motor Nema 34

£45.00

3 in stock

SKU: E3418S257
Category:

Product Description


The E3418S257 Hybrid Stepper Motor NEMA 34  is a 1.8° Single Shaft Hybrid Stepper Motor.

  • NEMA 34
  • Unipolar

Electrical Specification:

  • Part Number:          E3418S257
  • Step Angle:             1.8° with 5% accuracy
  • Voltage:                   2.9 V
  • Rated Current:        3.05A
  • Phase Resistance:  0.95 Ohm
  • Inductance:             3.8 mH
  • Holding Torque:       110 min Ncm
  • Rotor Inertia:           520 g cm²
  • Motor Type:             Unipolar

Physical Specification

  • Frame size:              82.55 x 82.55mm
  • Body Length:            62 mm
  • Shaft Diameter:        ø 9.525 mm
  • Shaft Configuration:  Single
  • Number of Leads:     6
  • Lead Length:            1000mm
  • Weight:                    1.4 Kgs

Additional information

Weight 1.4 kg

Dimension diagram


Data Sheets

PDF: Astrosyn E3418S2571
