P300/2 Compact Stepper Motor Driver 1.0A

£61.80

5 in stock

SKU: P300/2

Notice: WC_Product::get_categories is deprecated since version 3.0! Use wc_get_product_category_list instead. in /home/astrosyn/public_html/wp-includes/functions.php on line 3838
Category:
Notice: WC_Product::get_tags is deprecated since version 3.0! Use wc_get_product_tag_list instead. in /home/astrosyn/public_html/wp-includes/functions.php on line 3838

Product Description

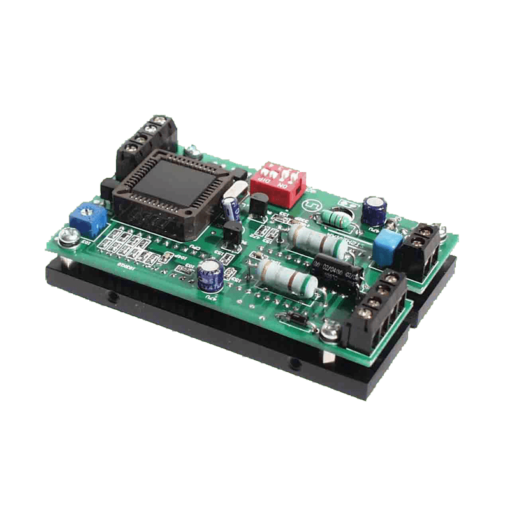

The model P300/2 compact open frame bipolar stepper driver gives a maximum output current of 1A per phase, in full stepping mode or six microstepping ranges.

The driver uses a full bridge bipolar pulse width modulated MOSFET technique to control stepper Motors in 2-phase or 4-phase modes.



Key Features

  • Supply voltage 18V – 36V dc
  • Output current 0.2A – 1.0A/phase
  • PWM constant current bipolar drive
  • 7 operation modes with maximum 64 microstepping options
  • Opto-isolated digital signals
  • Low noise and vibration drive performance

Additional information

Weight 0.150 kg

Notice: Undefined variable: string in /home/astrosyn/public_html/wp-content/themes/astrosyn/functions.php on line 80

Notice: Only variables should be passed by reference in /home/astrosyn/public_html/wp-content/themes/astrosyn/functions.php on line 82

Notice: Undefined variable: string in /home/astrosyn/public_html/wp-content/themes/astrosyn/functions.php on line 235

Data Sheets

PDF: P300 Stepper Motor Drive Technical Datasheet



Guides

Guide to Stepper Motor Drive Selection


Notice: Undefined variable: string in /home/astrosyn/public_html/wp-content/themes/astrosyn/functions.php on line 171

Q: How can I work out which stepper motor drive I need?
A: If you are new to these products we suggest that you start by reading our technical guides to stepper motors and stepper motor drives. These may be downloaded through the Technical section of this website. With this overview you will then need to review the motor and drive product ranges, e.g., unipolar or bipolar drive mode, drive voltage and current, size and style of drive etc.

Q: Are your products suitable for worldwide use?
A: In general, yes, as they are DC powered and designed to International Standards.

Q: Are the products compliant with EU safety standards and directives?
A: Yes, we apply all relevant European Directives to our designs, and where appropriate, carry out EMC testing in independent laboratories.

Q: Are the products compliant with the RoHS Directive?
A: Our materials and manufacturing processes were converted to RoHS-compliance several years ago. All of our current products are fully RoHS-compliant.

Q: Do you accept credit card payment for goods?
